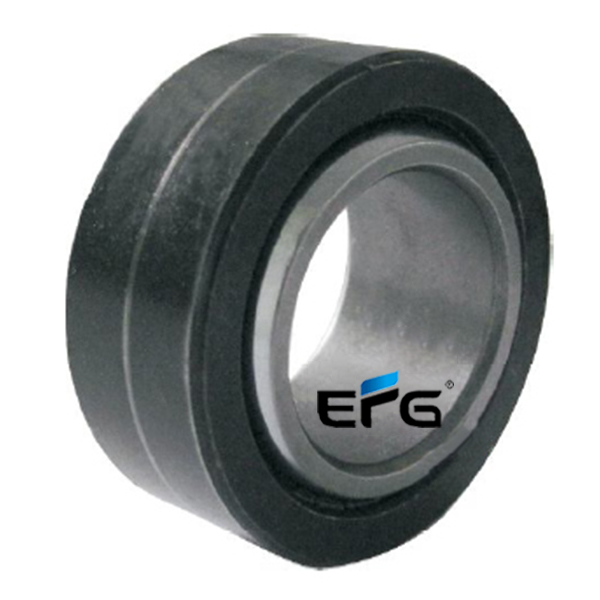

The outer ring material is made of high-hardness steel (hardness HRC: 58 or above), quenched, phosphated, polished (special needs, hard chrome plating on the inner arc surface of the outer ring), polished, the inner ring base is a high-strength copper alloy, and the ball table is inlaid In the process of use, the high-mesh graphite and MoS2 composite solid lubricant makes the fine particles of the solid lubricant spread across the entire contact surface through frictional heat, forming a lubricating film similar to the oil film, but with a long lubricating effect compared to the oil film. The lubricating material is not lost, and the lubricating object is less worn.
Select | No. | Type | Dimension(mm) | Load rating(kN) | Weight ≈kg | Stock | Inquiry | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

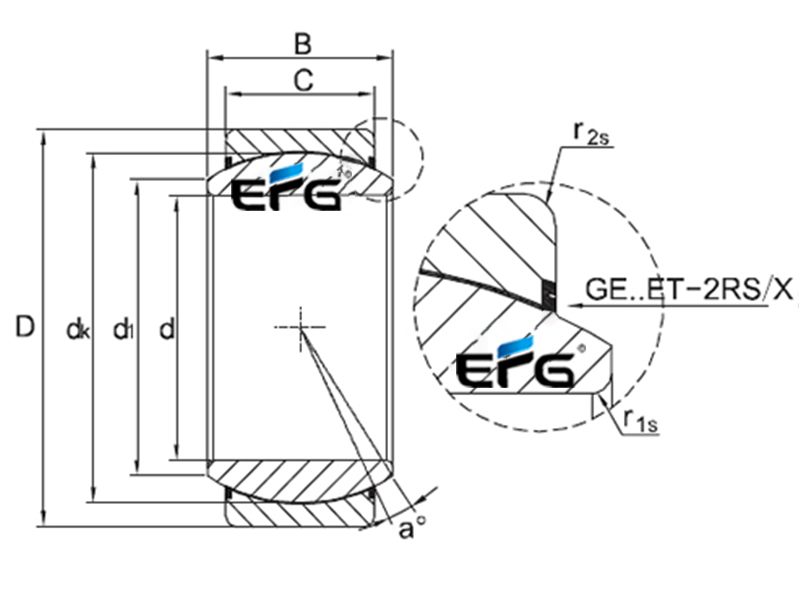

d | D | B | C | dk | r1s(min) | r2s (min) | a° ≈ | Dynamic | Static | ||||||
GE70XT/X | GE70XT-2RS/X | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 550 | 1100 | 1.55 | ○ | ||
GE80XT/X | GE80XT-2RS/X | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 705 | 1410 | 2.31 | ○ | ||
GE90XT/X | GE90XT-2RS/X | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 860 | 1720 | 2.75 | ○ | ||
GE100XT/X | GE100XT-2RS/X | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 1070 | 2140 | 4.45 | ○ | ||
GE110XT/X | GE110XT-2RS/X | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 1150 | 2300 | 4.82 | ○ | ||
GE120XT/X | GE120XT-2RS/X | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 1680 | 3360 | 8.05 | ○ | ||
GE140XT/X | GE140XT-2RS/X | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1890 | 3780 | 11.02 | ○ | ||
GE160XT/X | GE160XT-2RS/X | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 8 | 2400 | 4800 | 14.01 | ○ | ||
GE180XT/X | GE180XT-2RS/X | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 6 | 2700 | 5400 | 18.65 | ○ | ||
GE200XT/X | GE200XT-2RS/X | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 7 | 3750 | 7500 | 28.03 | ○ | ||
