The chain of the Rice harvester is a metal chain ring or ring, which is used for the transmission and traction of the combined harvester. The chain drive is an indispensable transmission mechanism in the Rice harvester. Its work directly affects the normal operation and performance of each part of the harvester.

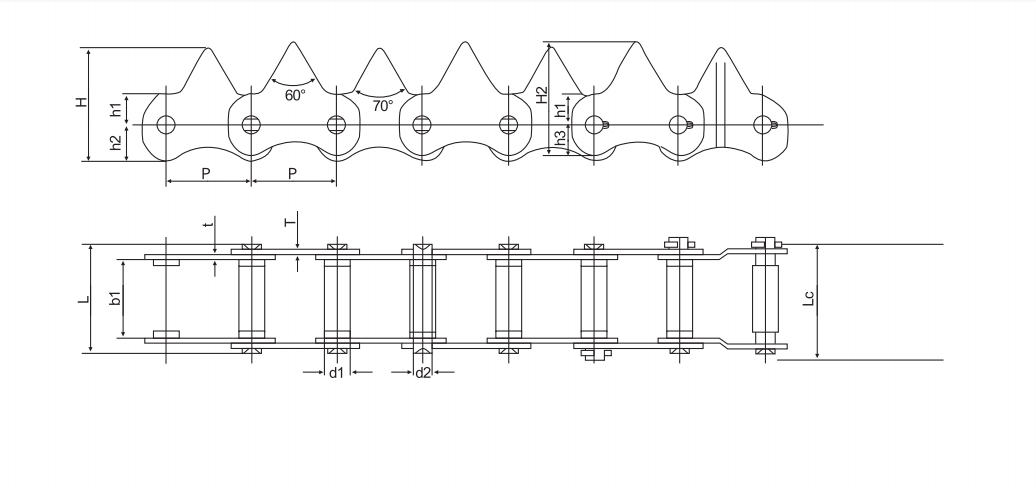

Select | No. | Pitch mm | Roller diameter mm | Inner section width mm | Pin diameter mm | Pin length mm | Chain plate thickness mm | Chain plate size mm | Tensile strength kN | Inquiry | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
p | d1 max | b1 min | d2 max | L max | Lc max | t/T | h1 | h2 | H1 | h3 | H2 | Q min | |||
3322T-63203 | 33 | 10.1 | 22 | 7 | 33 | 35.7 | 1.6/2.0 | 10 | 16 | 36 | 13 | 43 | 19.6 | ||
3330T-66103 | 33 | 10.1 | 30 | 7 | 40.9 | 43.7 | 1.6/2.0 | 10 | 16 | 36 | 13 | 43 | 19.6 | ||
