EFG BEARINGS (XIAMEN) CO., LTD.-Products-25 Sprocket

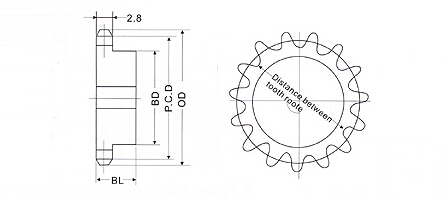

Select	No. of Teeth	Outside Diam.	Pitch Diam.	Bottom Or Caliper Diam.	Stock Bore	Type"B"Single Strand	Weight. Kg	Material	Inquiry
OD	P.C.D	Hub Diam.BD	Hub Length bl Thru Bore	Bore Min.	Bore Max.
	10	23	20.55	17.25	6.5	14	15	8	8.5	0.03	-
	11	25	22.54	19.01	6.5	15	15	8	8.5	0.03	S45C
	12	28	24.53	21.23	7.5	15	15	8	9.5	0.03	-
	13	30	26.53	23.04	7.5	18	15	9.5	10	0.05	-
	14	32	28.54	25.24	7.5	20	15	9.5	10	0.05	-
	15	34	30.54	27.07	7.5	20	15	9.5	10	0.05	-
	16	36	32.55	29.25	9.5	25	15	11.5	12	0.06	-
	17	38	34.56	31.11	9.5	25	15	11.5	12	0.07	-
	18	40	36.57	33.27	9.5	25	15	11.5	12	0.07	-
	19	42	38.58	35.15	9.5	28	15	11.5	16	0.08	-
	20	44	40.59	37.29	9.5	28	15	11.5	16	0.08	-
	21	46	42.61	39.19	9.5	28	15	11.5	16	0.09	-
	22	48	44.62	41.32	9.5	30	15	11.5	16	0.1	-
	23	50	46.63	43.23	9.5	30	15	11.5	16	0.11	-
	24	52	48.65	45.35	9.5	30	15	11.5	16	0.12	-
	25	54	50.66	47.27	9.5	35	15	11.5	20	0.14	-
	26	56	52.68	49.38	9.5	35	15	11.5	20	0.14	-
	27	58	54.7	51.3	9.5	35	15	11.5	20	0.15	-
	28	60	56.71	53.41	9.5	35	15	11.5	20	0.15	-
	29	62	58.73	55.35	9.5	35	15	11.5	20	0.16	-
	30	64	60.75	57.45	9.5	35	15	11.5	20	0.16	-
	31	66	62.77	59.39	10.5	40	20	12.5	22	0.2	-
	32	68	64.78	61.48	10.5	40	20	12.5	22	0.2	-
	33	70	66.8	63.43	10.5	40	20	12.5	22	0.2	-
	34	72	68.82	65.52	10.5	40	20	12.5	22	0.21	-
	35	74	70.84	67.47	10.5	40	20	12.5	22	0.21	-
	36	76	72.86	69.56	10.5	40	20	12.5	22	0.22	-
	37	78	74.88	71.51	10.5	40	20	12.5	22	0.26	-
	38	80	76.9	73.6	10.5	40	20	12.5	22	0.26	-
	39	82	78.91	75.55	10.5	40	20	12.5	22	0.27	-
